BX61 is Programmable Terminal Designed for Industrial Weighing Applications; Counting, Checkweighing, SQC Terminal for Net Weight Control of Prepacked Products, Vibrating Batchers.

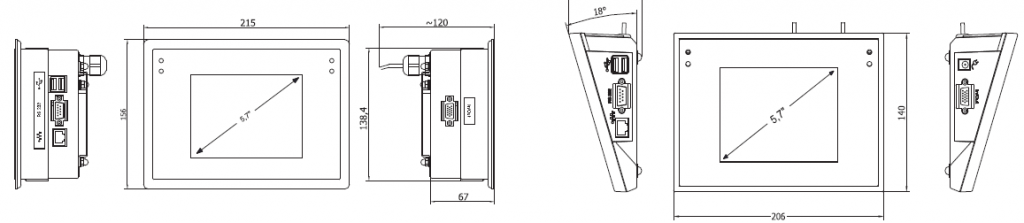

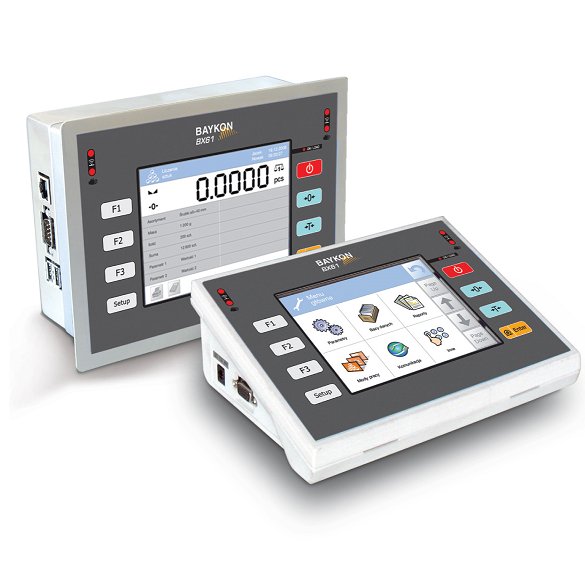

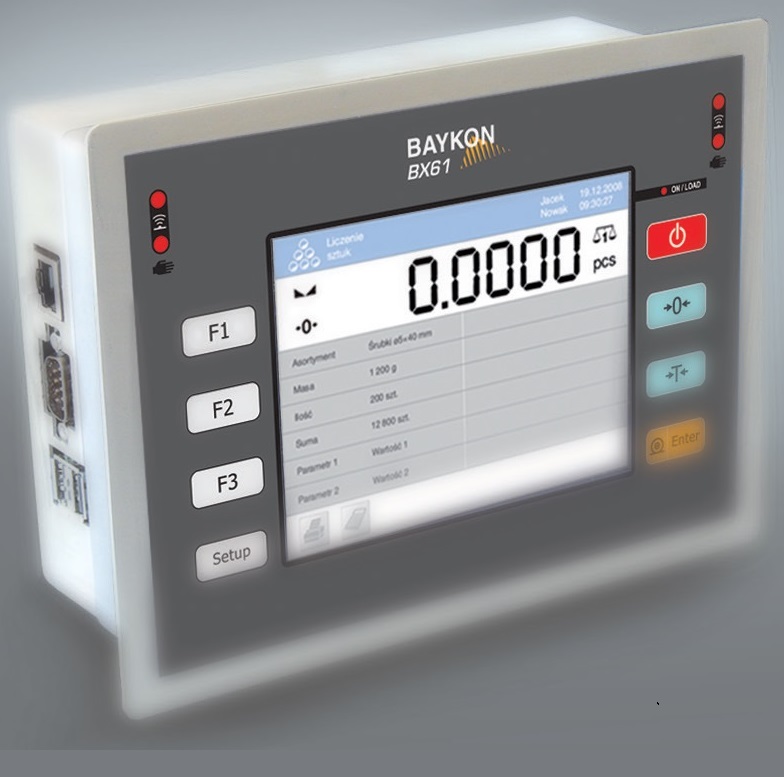

It is available as desktop plastic housing and panel type with stainless steel, IP65 front panel. It is equipped with a 5.7" colour graphic display with touch panel and membrane keypad.

BX61 terminal offers simultanous operation up to 2 weighing platforms and precision balances, barcode scanners, magnetic card readers, recipe and label printers, external PC keypad and mouse, external buttons, relays and PLCs over parallel I/Os.

BX61 offers perfect data integration features; data export as text file, SQL level transfer and carrying data via USB flash.

Key Features:

- OIML approved
- EU type approval: 6000e
- Protection class: IP66/IP67
- Power supply: 10-28 VDC
