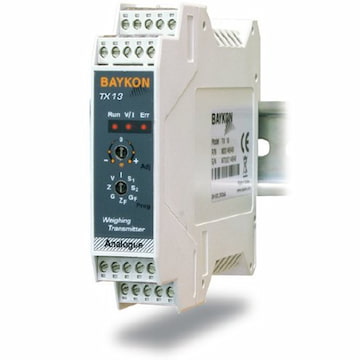

TX13 Analog Load Cell Transmitter Converts Load Cell Signal to Analog Output Very Fast and Accurately. Programmable smart filter of TX13 minimizes the environmental vibration to produce the best filtered signal to your PLC for your weight and force measurement systems. Its high quality analog & digital hardware eliminates zero and span drifts caused by temperature changes and provides perfect stability for long term unlike traditional analogue transmitters.

Analogue output is programmable as 4-20 mA, 0-20 mA, 0-10 V, 0-5 V. TX13 MB has additionally -10 to 10 V analog output range. All instruments are normalized and matched in the production for direct replicement when calibration done at the PLC side and to provide highest accuracy for electronic calibration (eCAL).

2 cut off outputs can be used for alarm or control valves; one digital input can be used for zeroing the scale.

Key Features:
-Analogue output: 4-20 mA, 0-20 mA, 0-10 VDC or 0-5 V
-Load cell excitation: 5 VDC
-Power supply: 12 - 28 VDC, max. 0.2 A
-Operation temperature: Between -15degC and +55degC
