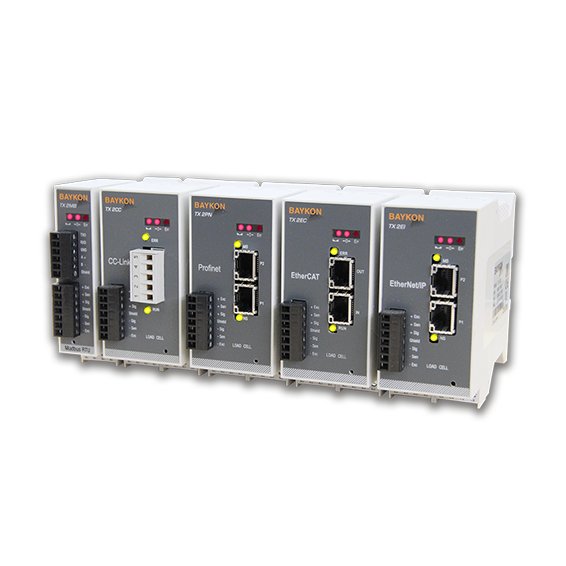

TX2 DIGITAL TRANSMITTERS
TX2 Digital Transmitter Family is Designed for Static or Dynamic Weighing and Force Measurement Processes to Provide Fast and Accurate Digital Data Through RS-232C, RS-485, Ethernet TCP/IP and bus systems as Profibus, Modbus TCP, Modbus RTU, Profinet, CANopen, EtherNet/IP, EtherCAT, CC-Link, Powerlink.

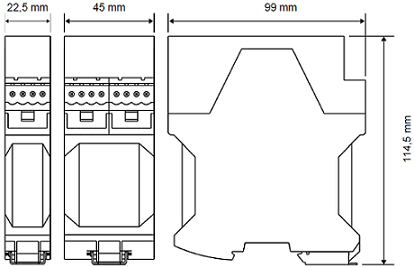

Weighing functions such as zeroing, taring, power-on zero, net indication at power on, motion detection, etc. are integrated in TX2 Transmitters. Configurable vibration suppression digital filter settings and calibration with test weight or electronic calibration without test weights (eCal) via Windows based Baykon xFace Software. DIN rail type enclosure provides easy montage in control panel.
-RS232C, RS485, Modbus, Ethernet TCP/ IP, Profibus, Profinet IO, CANopen, Ethernet IP, Profinet IPC
-Load cell excitation: 5 VDC, max. 100 mA
