TX4 Digital Transmitter Family is Designed for Static or Dynamic Weighing and Force Measurement Processes to Provide Fast and Accurate Digital Data Through RS-232C, RS-485, Ethernet TCP/IP and bus systems as profibus, modbus TCP, modbus RTU, profinet, CANopen, EtherNet/IP, EtherCAT, CC-Link, powerlink. TX4 Transmitters have a parallel port including 1 x output and 2 configurable as inputs or outputs which can be controlled directly by PLC.

TX4 Transmitters are programmed and calibrated via PC by Baykon xFace Software. Weighing functions such as zeroing, taring, power-on zero, net indication at power on, motion detection, configurable vibration suppression digital filter and electronic calibration without test weights (eCal) are important features. DIN rail type enclosure provides easy montage in control panel.

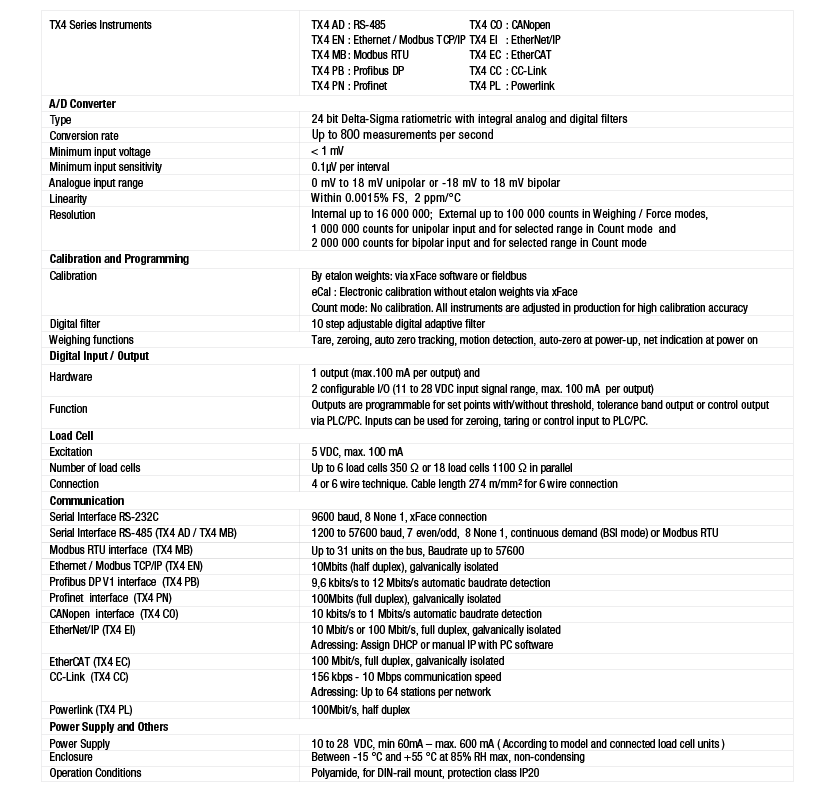

Key Features:

-RS232C, RS485, Modbus, Ethernet TCP/ IP, Profibus, Profinet IO, CANopen, Ethernet IP, Profinet IPC
-Load cell excitation: 5 VDC, max. 100 mA
