BWI-CSA CRANE SCALE

Baykon BWI-CSA, Series Crane Scales are designed to attach to the crane hook for fast and practical weighing of heavy loads while being lifted. They are powered by rechargeable battery pack and have large LED or LCD display easy to read from long distance. Baykon crane scales are available in wide range weighing capacity alternatives for different industries and can be transported easily in plant thanks to their compact, lightweight construction. These features along with their advanced weighing functions offer the most suitable and effective working conditions for the users.

Baykon Crane Scales offers high precision and reliability with the highest safety for overhead weighing applications in different industries such as Heavy Industry, Construction, Transport, Steel, Paper Etc. They are suitable for the applications of measuring and recording the weight value in production, warehouse, dispatch location of various industries and for some force measuring process.

Key Features:

-Weighing capacity (kg): 1000 ~ 5000
-Accuracy (kg): 0.5
-Operation time: 60 ~ 100 hours
-Remote control & high battery life

Group

Functional Features

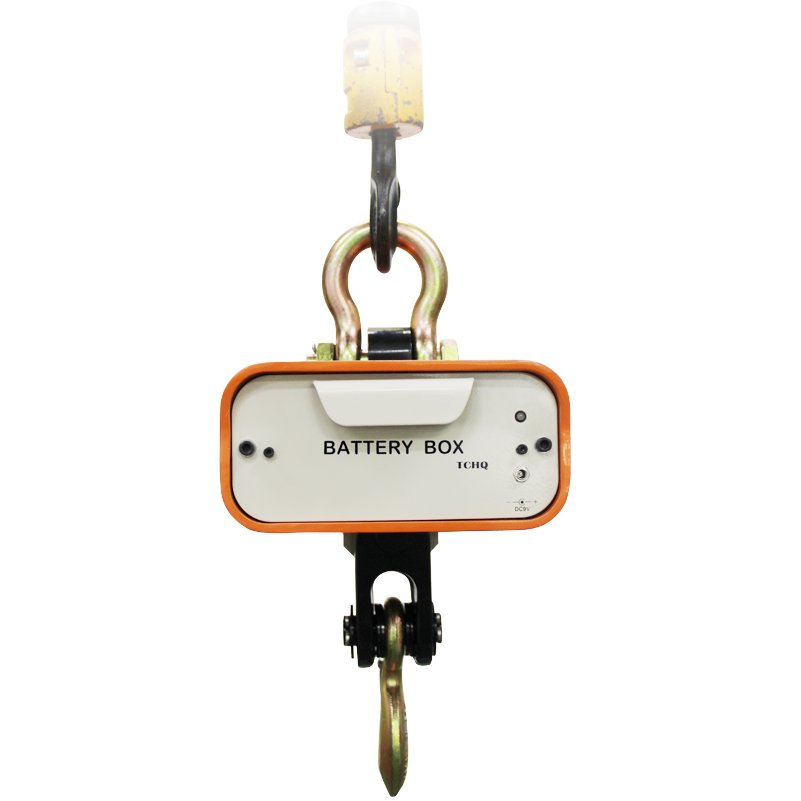

Operation With Battery Pack

Baykon Crane scales provide extended operating time thanks to their long life rechargeable battery pack. With standby feature operating time can reach up to 60 hours.

Remote control

Besides keys, on select models, infrared or bluetooth technology remote controller, allows users to utilizescales functions easily such as zeroing, printing, capture peak weight etc. at a distance of up to 20 m.

Remote Displays

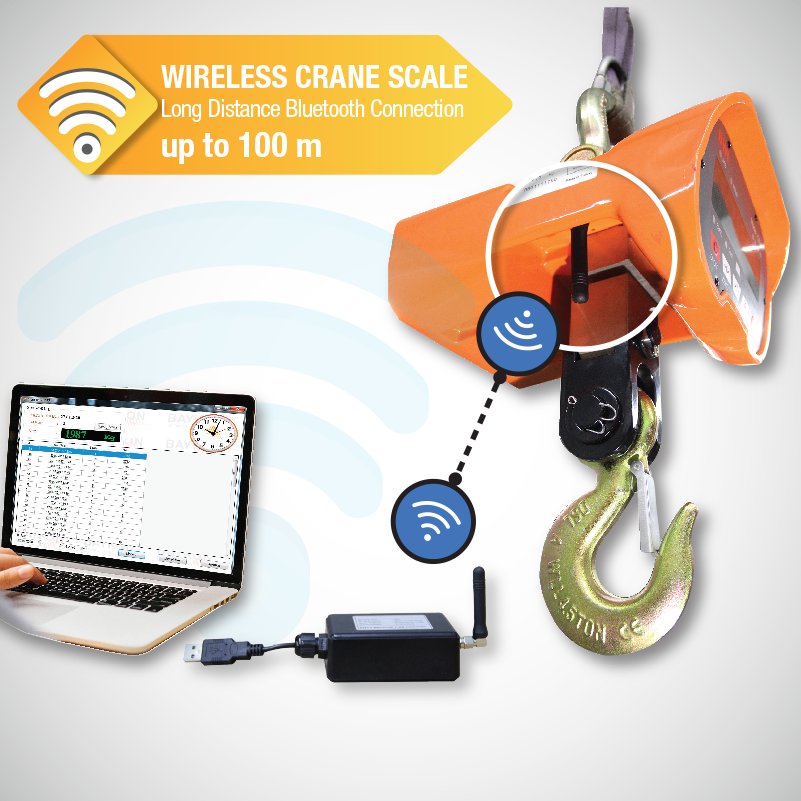

In case the display cannot be read from long distance or the weighing process requires, with wireless communication option, the weighing data can be transmitted in continiuous form to Baykon remote displays offered in various dimensions.

Tensile (Force) Measurement

Function of catching the peak value, offered as standard,is a precise and practical solution for tensile testing requiring pull off and breaking force measurement.

Compound Weighing

Especially it is implemented into the travers or overhead crane systems. It is aprecise weighing method of the load at least lifted from two points by using the crane scales. Generally, it is used for weighing paper coil or measuring the coating material consumption in coating process such as galvanizing

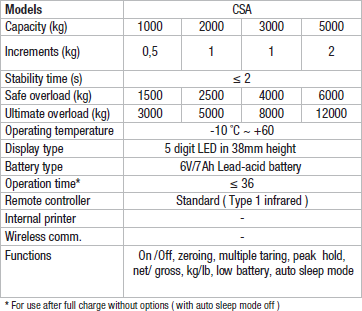

Technical Specifications

Documents

baykon-bwi-csax-crane-scale-catalogue.pdf
