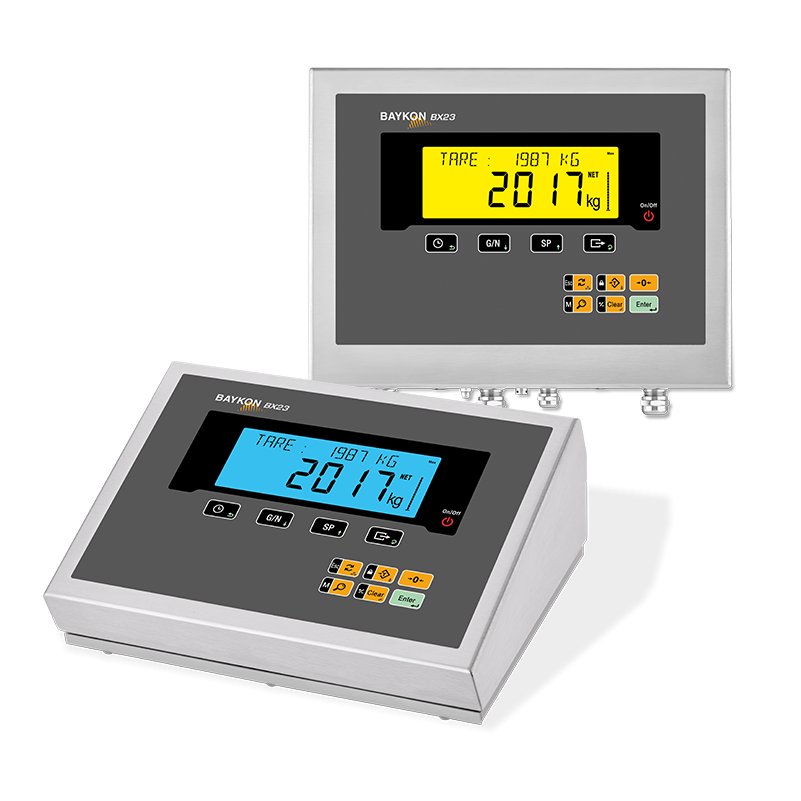

BX23 / BX23D WEIGHING INDICATOR

Baykon BX23 & BX23D are low cost weighing terminals; offer high accuracy, and performance with strong connectivity options for all weighing applications. With its IP67 protected stainless steel housing, it provides reliable and safe operation in wet, hygienic and harsh industrial areas.



BX23 & BX23D have strong calibration alternatives including eCAL electronic calibration which is extremely important tool for heavy capacity tank scales and calibration of tanks without emptying.



For connectivity, BX23 & BX23D have 2 x RS232C, 1 x RS485, Ethernet TCP/IP and 1 x USB as standards; and for optional interfaces they have Analogue output, EtherNet/IP, Profibus, Profinet, CANopen, EtherCAT, CC-Link, Powerlink and Digital I/O with 4 opto isolated inputs and 5 relay outputs.

Key Features:
- OIML approved
- EU type approval: Class III
- Protection Class: IP67
- Power supply: 100-240 VAC

Group

Functional Features
Main Features
- Stainless steel, IP67 protected for wet, hygienic and harsh areas
- Color selectable LCD display with alphanumeric info line
- Bar graph to follow gross weight capacity
- Key based locking against interfering
High Technology and Performance
- Up to 999 999 display resolution
- Up to 800 conversions per second
- Smart and adaptive filter
- High capacity tank scales supported by eCAL - electronic calibration
- Span adjustment of loaded tanks without emptying
Typical Applications
- Process weighing applications; tank, silo, hopper and conveyor weighing
- Programmable display color
- Livestock and dynamic weighing with strong dynamic weighing algorithm
Integration & Connectivity
- 2 x RS232C, RS485 (Modbus RTU) Ethernet TCP/IP (Mudbus TCP), and USB are standard,
- Profibus, Profinet, CANopen, EtherNet/IP, EtherCAT, CC-Link, Powerlink, Analogue outputs, and Digital I/O are optional.

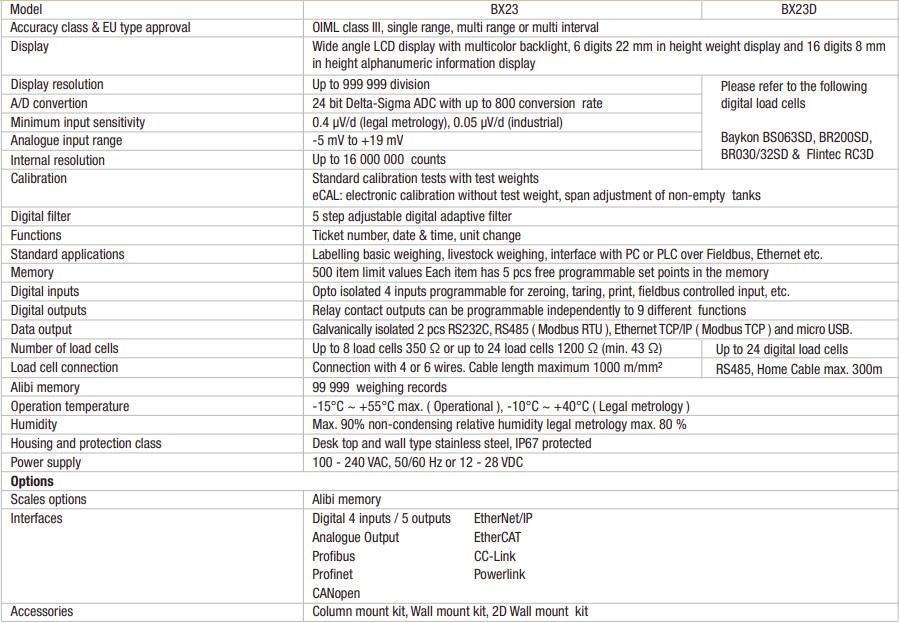

Technical Specifications

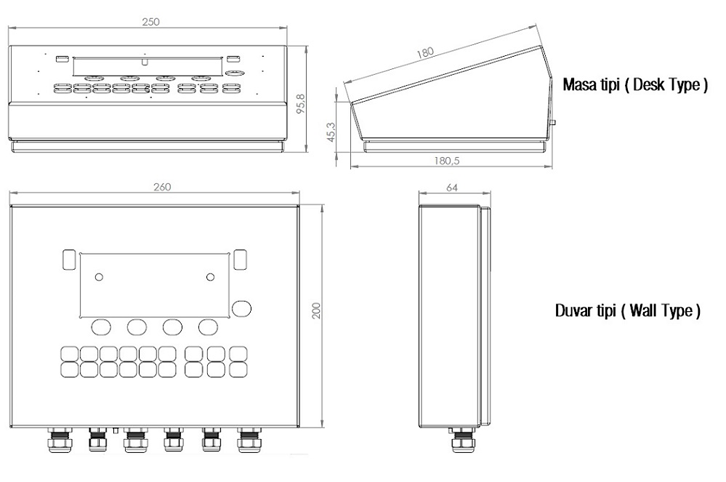

Dimensions
Documents
PDF icon baykon-bx23-bx23d-weighing-indicator-catalogue.pdf
PDF icon atex-production-quality-assurance-certificate.pdf
PDF icon oiml-certificate-conf-bx2x.pdf
