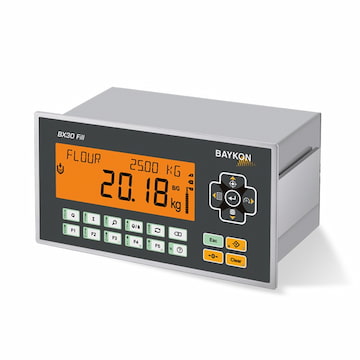

BX30 FILL FILLING CONTROLLER

Its programmable 7 keys can be assigned to the predefined functions in order to provide quick and informative operation. Freely programmable digital inputs and outputs eliminates additional PLC requirement in the cabinet to control customers pump, pilot valve, nitrogen purging, rotary valve, bag inflator, material activator etc.

Programmable reserved I/O ports enable operation until receiving the new digital I/O board in case of any digital I/O malfunction.

Key Features:

-OIML approved
-EU type approval
-Protection class: IP67
-Power supply: 12 - 28 VDC

Group

Functional Features

Main Features

- 12 different operation modes for the most common applications,
- Configurable recipe content,
- 7 Programmable keys,
- Digital I/O's: internal 12/14, external 16/16
- Spare I/O's to continue filling in case of any digital I/O malfunction.

Smart Operation with

- Smart filling algorithms,
- Smart start-up the filling.
- Full control of bagging machines,
- Master-slave operation to transfer set-up to other instruments,
- Multicolor LCD to guide and warn the operator.

Advanced Technology & Performance

- High speed real time operation,
- Up to 1600 conversions per second,
- 1000 times higher filling control resolution than scale increment,
- Freely programmable digital I/O's, timers and logic functions,
- Remote service via internet.

Integration & Connectivity

- Ethernet TCP/IP, USB, RS-232C, RS-485, Profibus, Profinet, Modbus RTU, Modbus TCP, EtherNet/IP, EtherCAT, CANopen, CC-Link, CC-Link IE, Powerlink
- DIN rail digital I/O unit for easy cabling in the cabinet.
